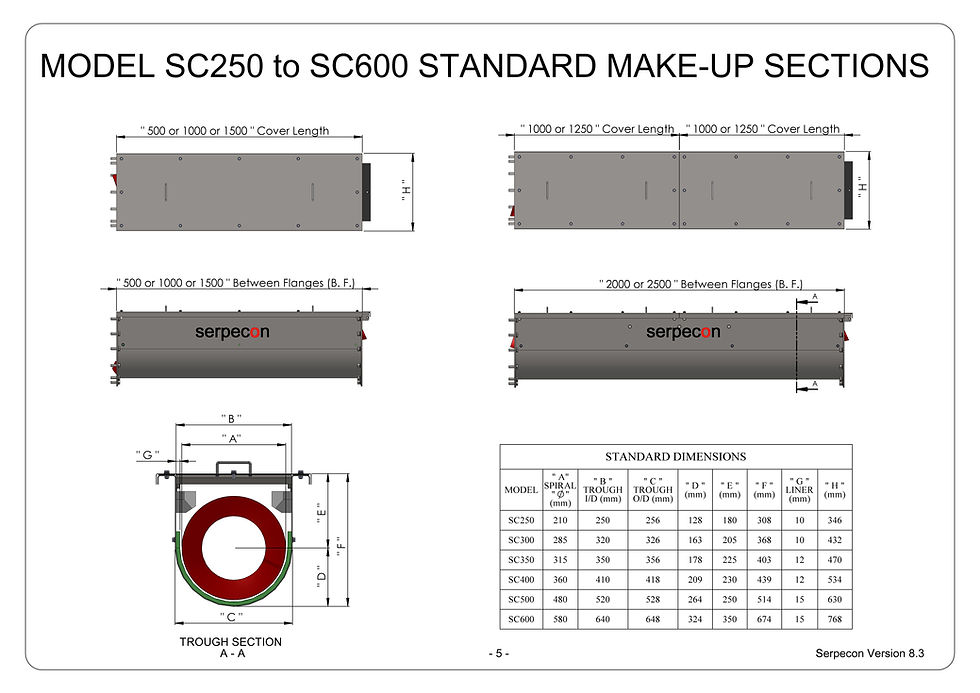

SC250 - SC600 Serpecon Centreless Screw Conveyor
Used to convey screenings, de-watered sludge, grit and other heterogenous materials. Our conveyors are designed with a centreless screw to convey and transfer difficult to handle substances including:
- Solid waste materials
- Sewage sludge
- Grit
- Screenings
- Food
- Factory waste
Our centreless screw flighting offers the most reliable way to convey these types of products by preventing entanglement and jamming. Serpecon’s centreless screw spirals also have a longer average life span due to high wear resistance. Without the need for a tail-end bearing, we remove the risk of clogging when conveying damp, sticky and fibrous substances.
Our conveyors are designed to convey in either a closed stainless-steel tube or a lidden trough sealed by gaskets. This helps to reduce odour and prevent spillage of conveyed materials.
Specifications
| Description | SC250 | SC300 | SC350 | SC400 | SC500 | SC600 |
| Capacity (m3/hour) | 0.5 to 3 | 1 to 6 | 2 to 10 | 2 to 15 | 4 to 30 | 6 to 50 |
| Incline (degrees) | 0 to 12 | 0 to 18 | 0 to 20 | 0 to 22 | 0 to 30 | 0 to 30 |
| Geared Motor Type | Direct Shaft Mounted | Direct Shaft Mounted | Direct Shaft Mounted | Direct Shaft Mounted | Direct Shaft Mounted | Direct Shaft Mounted |
| Power (kw) | 1.5 to 4.0 | 2.2 to 5.5 | 2.2 to 7.5 | 2.2 to 15 | 5.5 to 22 | 7.5 to 30 |
| Rpm @ 50hz | Up to 40 | Up to 40 | Up to 36 | Up to 36 | Up to 32 | Up to 30 |
| Length (m) | 2 to 10 | 2 to 15 | 2 to 15 | 2 to 25 | 2 to 40 | 4 to 60 |
| Casing Construction | 304 - 316 Stainless | 304 - 316 Stainless | 304 - 316 Stainless | 304 - 316 Stainless | 304 - 316 Stainless | 304 - 316 Stainless |
| Casing Thickness (mm) | 3 | 3 | 3 | 4 | 4 | 4 |
| Cover Thickness (mm) | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 2 |
| Drive End Plate Thickness (mm) | 6 | 6 | 8 | 8 | 10 | 10 |
| Tail End Plate Thickness (mm) | 5 | 5 | 5 | 6 | 6 | 6 |
| Spiral Construction | SB350D- SB400D HT | SB350D- SB400D HT | SB350D- SB400D HT | SB350D- SB400D HT | SB350D- SB400D HT | SB350D- SB400D HT |
| Spiral Diameter (mm) | 210 | 285 | 315 | 360 | 480 | 580 |
| Spiral Pitch Range (mm) | 210-245 | 140-340 | 190-315 | 240-410 | 320-535 | 385-480 |
| Spiral Thickness (mm) | 20-25 | 20-25 | 20-30 | 20-30 | 25-35 | 25-35 |
| Spiral Bar Size Range (mm) | 50-60 | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 |
| Spiral Rotation Monitor | Leutz 40 | Leutz 40 | Leutz 40 | Leutz 40 | Leutz 40 | Leutz 40 |
| Plastic Liner Construction | PE1000 10mm | PE1000 10mm | PE1000 12mm | PE1000 12mm | PE1000 12mm | PE1000 15mm |
| Plastic Liner Hold Down Blocks | PE500 | PE500 | PE500 | PE500 | PE500 | PE500 |
| Liner Wear Indiator | Leutz 20 | Leutz 20 | Leutz 20 | Leutz 20 | Leutz 20 | Leutz 20 |
